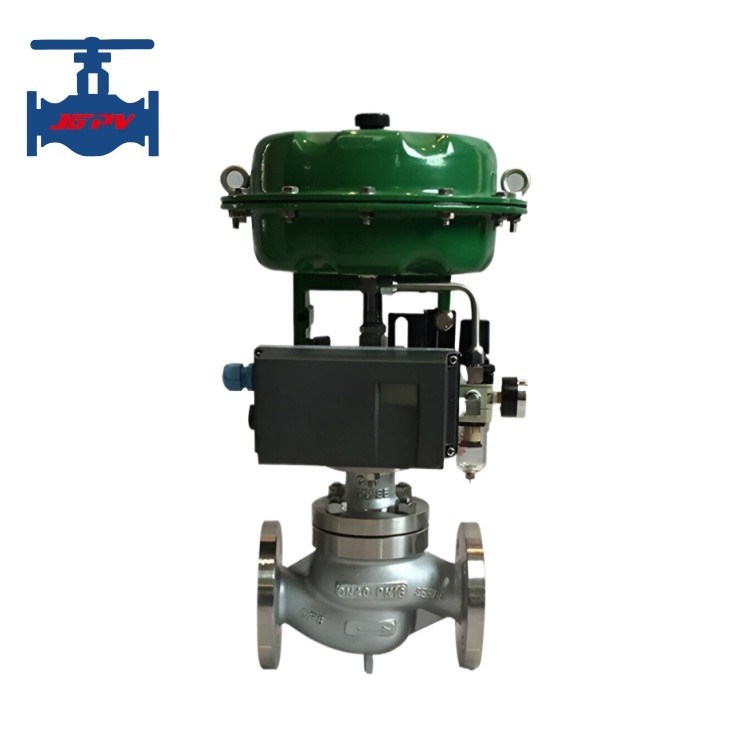

Pneumatic Control Valve with Multi Spring Actuator and Top Guide Structure for S-shaped Fluid Channel

제품 세부 정보

원래 장소: 중국

브랜드 이름: JGPV

지불 및 배송 조건

최소 주문 수량: 1세트

포장 세부 사항: 합판 상자 안전 포장

배달 시간: 14 일

지불 조건: L/C, T/T, 웨스턴 유니온

공급 능력: 한 달에 500 세트

가장 좋은 가격 을 구하라

제품 세부 정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                Multi Spring Actuator Pneumatic Control Valve, Top Guide Structure Diaphragm Proportional Valve, S-shaped Fluid Channel Regulating Valve


애플리케이션::	일반적인	자격증::	ISO9001, ISO14001
중간 유형 ::	물, 증기 및 기름 등	연결::	나사산 / 플랜지 / 용접
표준 또는 비표준 ::	기준	흐름 길 ::	양방향
작동 ::	수동, 전기, 공압, 자동	밀봉 성능 ::	씰링
작동 온도::	정상 온도 및 고온	압력 적용 ::	정상 압력
품질 보증 ::	18개월

애플리케이션::	일반적인
자격증::	ISO9001, ISO14001
중간 유형 ::	물, 증기 및 기름 등
연결::	나사산 / 플랜지 / 용접
표준 또는 비표준 ::	기준
흐름 길 ::	양방향
작동 ::	수동, 전기, 공압, 자동
밀봉 성능 ::	씰링
작동 온도::	정상 온도 및 고온
압력 적용 ::	정상 압력
품질 보증 ::	18개월

Pneumatic Control Valve with Multi Spring Actuator and Top Guide Structure for S-shaped Fluid Channel

Pneumatic Control Valve, Hot Oil Steam Diaphragm Proportional Valve

Pneumatic control valve, hot oil steam diaphragm proportional valve

Product Introduction

The pneumatic diaphragm regulating valve consists of a multi spring pneumatic actuator and a regulating valve body. Adopting a top guide structure, it has the advantages of compact structure, light weight, sensitive action, S-shaped fluid channel, low pressure drop loss, large valve capacity, precise flow characteristics, and easy disassembly and assembly.

Widely used for precise control of process parameters such as gas and liquid media to maintain pressure, flow rate, temperature, and liquid level at given values. Especially suitable for situations where the allowable leakage is small and the pressure difference before and after the valve is not significant.

Technical Parameters

Parameter	Value
Basic deviation	+/-1.0%
Leakage rate	5x10-3 rated capacity
Return difference rated	1.0%
Rated flow coefficient	+/-10%
Dead zone	1.0%
Inherent flow characteristics	Slope +/-30%

Product Features

Adopting a balanced valve core structure, the axial unbalanced force is small, the allowable pressure difference is large, and the stability is good.
The sleeve has strong interchangeability, easy disassembly and assembly.
The all metal valve core structure achieves a soft sealing structure with IV level leakage and VI level leakage.
The valve body is designed according to the principles of fluid mechanics as an equal cross-section low flow resistance channel, with an inherent adjustable ratio of 50 and a 30% increase in rated flow coefficient.
The actuator adopts a multi spring structure, reducing the height by 30%. Reduce weight by 30%.

Product Gallery
