강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Standard Slab Gate Valve, General Application Gate Valve, Diversion Hole Gate Valve


적용::	장군	증명하세요 ::	ISO9001, ISO14001
중간 유형 ::	물, 증기, 기름 등	작용하세요 ::	축합물 드레인
연결 ::	나사식 접속 방식	증가하는 타입 ::	다이렉트 마운트
표준 또는 비 표준::	기준	흐름 길 ::	양방향
작동 ::	수동, 전기, 공압, 자동	밀봉 성능 ::	봉합
작동 온도 ::	정상 온도와 높은 온도	압력 적용::	실내압력
품질 보증::	18개월

적용::	장군
증명하세요 ::	ISO9001, ISO14001
중간 유형 ::	물, 증기, 기름 등
작용하세요 ::	축합물 드레인
연결 ::	나사식 접속 방식
증가하는 타입 ::	다이렉트 마운트
표준 또는 비 표준::	기준
흐름 길 ::	양방향
작동 ::	수동, 전기, 공압, 자동
밀봉 성능 ::	봉합
작동 온도 ::	정상 온도와 높은 온도
압력 적용::	실내압력
품질 보증::	18개월

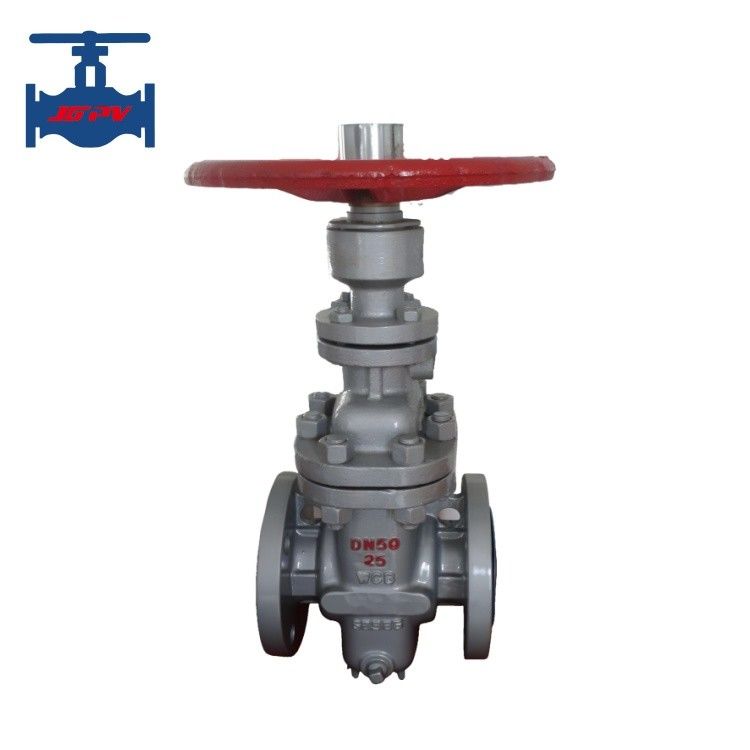

General Application Standard Slab Gate Valve with Diversion Hole

Slab Gate Valve with Diversion Hole

Product Specifications

Attribute	Value
Application	General
Certification	ISO9001, ISO14001
Medium Type	Water, steam and oil etc.
Function	Condensate drain
Connection	Screw connection
Mounting Type	Direct Mount
Standard	Standard
Flow Way	Two way
Actuation	Manual, Electric, Pneumatic, Automatic
Sealing Performance	Sealing
Working Temperature	Normal Temperature And High Temperature
Pressure Application	Normal Pressure
Quality Warranty	18 Months

Product Overview

Slab gate valve with diversion hole is a sliding valve whose closing part is a parallel gate. Its closing part can be a single gate or a double gate with a spreading mechanism in between.

Technical Parameters

Component	WCB	WC6	A352-LCB	A351-CF8M
Body	WCB	WC6	A352-LCB	A351-CF8M
Disc	2Cr13+ENP	20CrMoV+STL	ANSO410+ENP	ANSI316+ENP
Stem	2Cr13	2Cr13	A182-A6a	A182-A316S
Seat	25+PTFE	20CrMoV+STL	A105+PTFE	A182-F316+PTFE
Packing	NBR/FPM, Flexible Graphite, PTFE+FPM
Stud	35
Medium Application	Water, gas, oil etc.

Key Features

Floating valve seat design with bi-directional opening/closing for reliable sealing
Gate equipped with guide bars for precise guidance and hard alloy sprayed sealing surface for erosion resistance
High load-bearing valve body with straight-through channel design for minimal flow resistance
Double sealing mechanism creates high sealing pressure ratio for superior performance
Vulnerable parts can be replaced without affecting pipeline operation

Product Images
