제품 세부 정보
Place of Origin: China
지불 및 배송 조건
Minimum Order Quantity: 1set
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100pcs per month
Application:: |
General |
Medium Type:: |
Water, steam and oil etc. |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow way:: |
Two way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |
Application:: |
General |
Medium Type:: |
Water, steam and oil etc. |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow way:: |
Two way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |

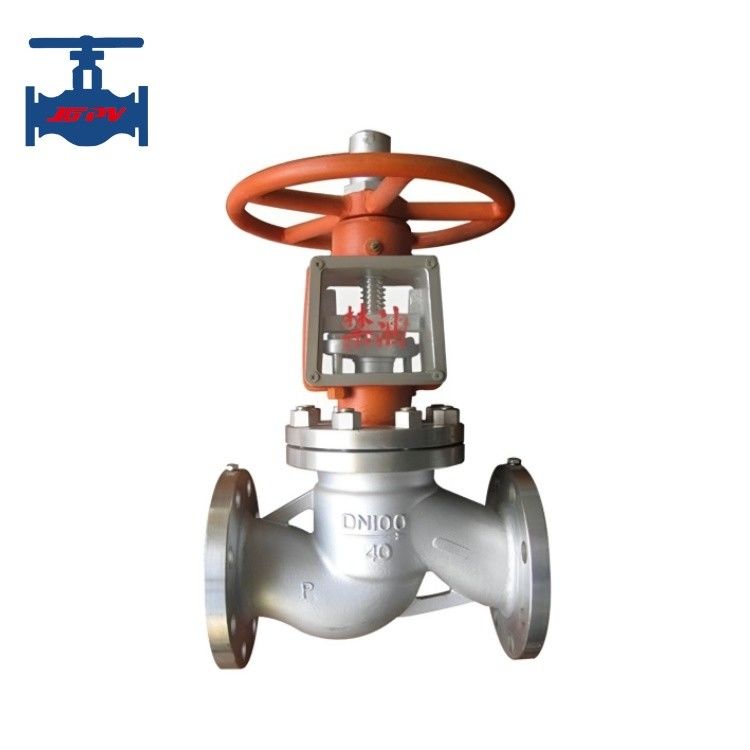

Highlight: Oxygen Globe Valve
Product introduction:
The stainless-steel oxygen globe valve is precision-cast from high-grade silicon brass or stainless steel, offering exceptional mechanical strength, wear resistance, and operational safety. Specifically designed for oxygen pipelines, its explosion-proof and flame-retardant properties effectively eliminate potential hazards, ensuring reliable performance in critical oxygen systems.
Product technical parameters:
|
Nominal Pressure PN(MPa) |
1.0 - 4.0 |
|
|
Nominal Diameter DN(mm) |
15～600 |
|
|
Test pressure (MPa) |
Strength (water) |
1.5 times of pressure nominal |
|
Sealing (water) |
1.1 times of pressure nominal |
|
|
Sealing (Air) |
0.6 times of pressure nominal |
|
|
Sealing for bellows (water) |
1.5 times of pressure nominal |
|
|
Raw material |
WCB, CF8, CF8M |
|
|
Medium suitable: |
Water, steam, oil mediums |
|
|
Working temperature |
-196℃～600℃ |
|
|
Connection type |
Flange |
|
|
Operational method |
Hand-wheel, bevel gear, pneumatic and electric actuators |
|
Product features:
