제품 세부 정보
원래 장소: 중국
지불 및 배송 조건
Minimum Order Quantity: 1set
포장 세부 사항: 합판 상자 안전 포장
배달 시간: 14 일
지불 조건: L/C,T/T,Western 통합
Supply Ability: 100pcs per month
적용:: |
장군 |
중간 유형 :: |
물, 증기, 기름 등 |
증가하는 타입 :: |
다이렉트 마운트 |
표준 또는 비 표준:: |
기준 |
흐름 길 :: |
양방향 |
작동 :: |
수동, 전기, 공압, 자동 |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
압력 적용:: |
실내압력 |
Quality Warranty:: |
18 Months |
적용:: |
장군 |
중간 유형 :: |
물, 증기, 기름 등 |
증가하는 타입 :: |
다이렉트 마운트 |
표준 또는 비 표준:: |
기준 |
흐름 길 :: |
양방향 |
작동 :: |
수동, 전기, 공압, 자동 |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
압력 적용:: |
실내압력 |
Quality Warranty:: |
18 Months |

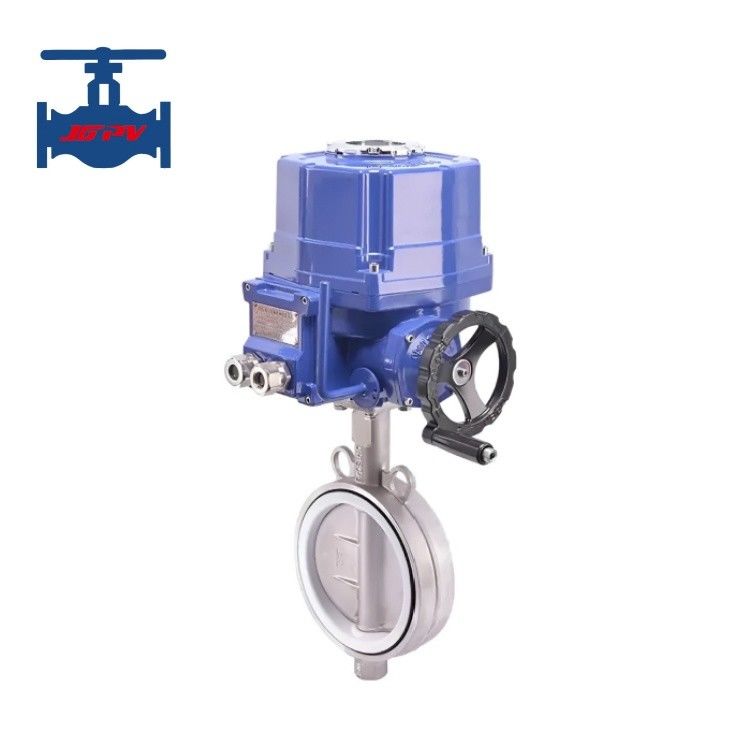

Highlight: electric wafer type butterfly valve
Product introduction:
The electric butterfly valve with electric actuator with on/off function to control operation, (AC220V/AC380V), has strong function,especially suitable for in the medium is thick,containing particles,fiber nature of the occasion. At present,the electric control valve is widely used in food,environmental protection, light industry, petroleum, paper, chemical,teaching and research equipment,power and other industries in the industrial automatic control system.
Product technical parameters:
|
Type number |
D971F-16P |
|
|
Nominal Diameter DN(mm) |
50～1200 |
|
|
Nominal Pressure PN(MPa) |
1.6 |
|
|
Control method |
Electricity: On/off switch |
|
|
Power supply |
AC380V |
|
|
Main parts |
Valve body |
Stainless steel 304 (CF8) |
|
Disc |
||
|
Valve seat |
PTFE |
|
|
Axle |
Stainless steel 304 (CF8) |
|
|
Water, air, oil and nitric acid etc corrosive medium |
||
|
Working temperature |
150≤℃ |
|
|
Connection type |
Wafer type |
|
|
Connection type |
Flange |
|
Product features:
1. Small and light, easy to disassemble and repair, can be installed in any location.
2. Simple structure, compact, 90°rotation start quickly.
3. flow characteristics tend to be straight, good regulation performance.
4. opening and closing test times up to tens of thousands of times, long life.
5. The sealing element can be replaced, the sealing is reliable to achieve two-way sealing, and the leakage of gas test is zero.
