제품 세부 정보
Place of Origin: China
지불 및 배송 조건
Minimum Order Quantity: 1set
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100pcs per month
Application:: |
General |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow way:: |
two way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |
Medium Type:: |
Water, steam and oil etc. |
Application:: |
General |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow way:: |
two way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |
Medium Type:: |
Water, steam and oil etc. |

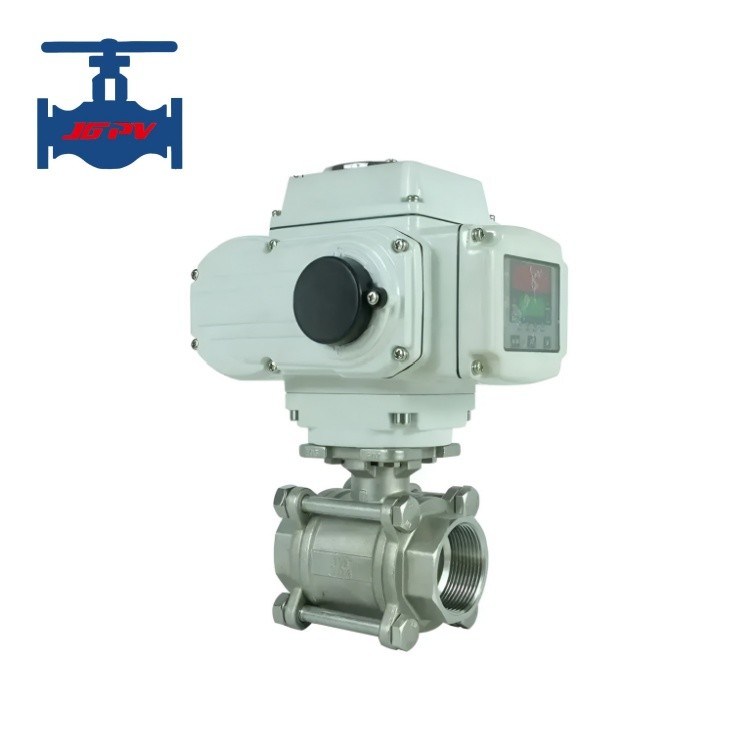

Highlight: 3PC Type Electric Ball Valve with Internal Threads
Product introduction:
The three-piece ball valve is a relatively new type of ball valve. It can be tightly closed with a 90-degree rotation operation
and very low torque. The completely equal inner cavity of the valve body provides a flow channel with minimal resistance
and straight-through flow for the medium. These structural features give it advantages that ordinary ball valves do not have,
such as frictionless switching, non-wearing seals, and low opening/closing torque. This can reduce the specification of thmatched actuator. Equipped with a multi-turn electric actuator, it can achieve precise regulation and tight shut-off of the
medium, and is widely suitable for工况 (working conditions) requiring strict shut-off in industries such as petroleum, chemical
engineering, and urban water supply and drainage.
Product technical parameters:
|
Nominal Diameter DN (mm) |
15~100 |
|
|
Nominal Pressure PN (MPa) |
1.6 |
|
|
Test Pressure (MPa) |
Strength (water) |
2.4 |
|
Enclose (Water) |
1.76 |
|
|
Main Components |
Body |
WCB/CF8/CF8M |
|
Valve ball |
Stainless steel/Carbon steel |
|
|
Seat |
PTFE |
|
|
Packing |
Soft graphite |
|
|
Shaft |
2Cr13 |
|
|
Handle |
Ductile iron |
|
|
Working temperature |
≤150℃ |
|
|
Medium suitable |
Water, oil, steam |
|
Product features:
1. The fluid resistance is small, and its resistance coefficient is equal to that of a pipe segment of the same length.
2. Simple structure, small size, and light weight.
3. Tight and reliable, the sealing surface material of the ball valve is widely used in plastic, with good sealing performance, and has also been widely used in vacuum systems.
4. Easy to operate, quick to open and close, with only a 90 ° rotation from full open to full close, facilitating remote control.
5. Easy to maintain, the ball valve has a simple structure, and the sealing ring is generally movable, making disassembly and replacement more convenient.
6.When fully open or fully closed, the sealing surfaces of the ball and valve seat are isolated from the medium. When the medium passes through, it will not cause erosion of the valve sealing surface.
