제품 세부 정보
원래 장소: 중국
브랜드 이름: JGPV
모델 번호: WZ41H-JGPV
지불 및 배송 조건
최소 주문 수량: 1SET
가격: USD99.9/pc to USD999.9/Set
배달 시간: 14 일
지불 조건: L/C,T/T,Western 통합
공급 능력: 한달에 1000PCS
표준 또는 비표준: |
표준 |
적용: |
장군 |
제품 특징: |
산업적 밸브 |
목적: |
파이프라인 열기 및 닫기 |
기술을 제조하기: |
단조 공장 |
원료: |
A105, F11, F22, F304, F316, F321 등 |
가등 압력: |
150LB-600LB |
포트의 크기: |
1/2 - 2 |
시험 표준: |
강도 테스트 및 밀봉 테스트 및 고객 요구 사항 |
품질 보증: |
18개월 |
표준 또는 비표준: |
표준 |
적용: |
장군 |
제품 특징: |
산업적 밸브 |
목적: |
파이프라인 열기 및 닫기 |
기술을 제조하기: |
단조 공장 |
원료: |
A105, F11, F22, F304, F316, F321 등 |
가등 압력: |
150LB-600LB |
포트의 크기: |
1/2 - 2 |
시험 표준: |
강도 테스트 및 밀봉 테스트 및 고객 요구 사항 |
품질 보증: |
18개월 |
Product introduction:

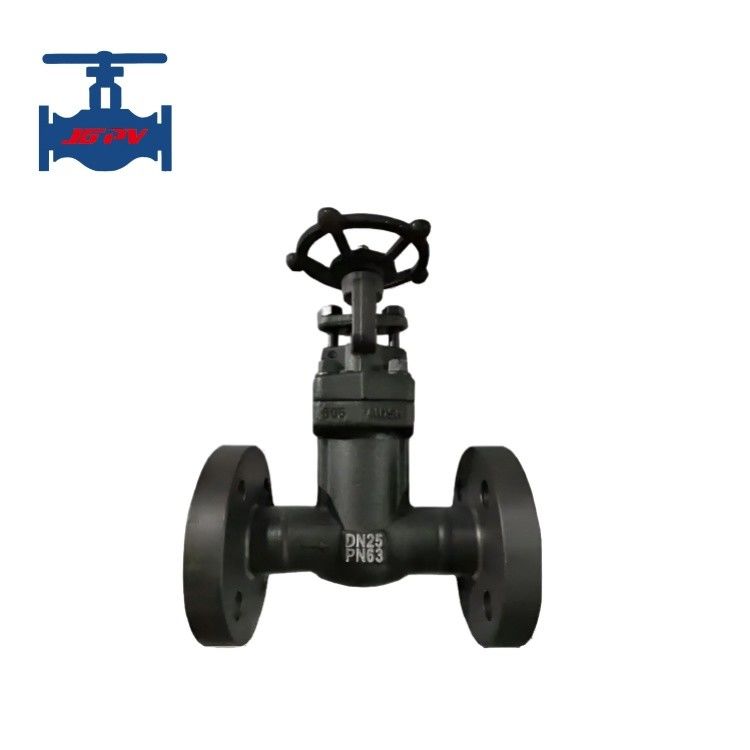

Forged steel gate valve is composed of components such as valve body, valve cover, valve stem, gate plate, and sealing parts. Among them, the valve body and valve cover are made of high-quality forged steel, which has high strength and good corrosion resistance. The valve stem is made of stainless steel material, which has good corrosion resistance and wear resistance. The gate is a key component of the valve, and its sealing performance directly affects the effectiveness of the valve. The sealing structure of forged steel gate valves is usually metal sealed, which can effectively prevent medium leakage.
And the other key component of the bellow sealed gate valve is the bellow pipe, its lower end is automatically welded with the valve stem assembly, and the upper end is automatically welded with the connecting plate to form a metal barrier between the fluid medium and the atmosphere, ensuring zero leakage of the valve stem.
This special type of dual sealing design, bellows and graphite packing to ensure zero leakage, If the bellows fails, the valve stem packing will also avoid leakage and comply with international sealing standards.The valve cover comes with a grease fitting, which can directly lubricate the valve stem, nut, and shaft sleeve, however, the traditional gate valves can only add lubricating oil to the threads.
Product technical parameter:
| Model | Z61H-JGPV |
| Pressure nominal | 1500lb to 2500lb |
| Port size | 1/2" - 2" |
| Sealing type | Pressure sealing sealing |
| Test pressure (Strength) | 1.5 times of pressure nominal |
| Test pressure (Sealing) | 1.1 times of pressure nominal |
| Working temperature | ≤600℃ |
| Medium application | Water, steam, oil and weak corrosive mediums |
| Connection | Flange, screw and weldable connections |
| Driven method | Hand-wheel, bevel gear and electric actuator optional |
| Installation range | Automation pipeline control in power, metallurgy, petrochemicals, environmental protection, energy management, fire protection systems, etc. |
Product features:
